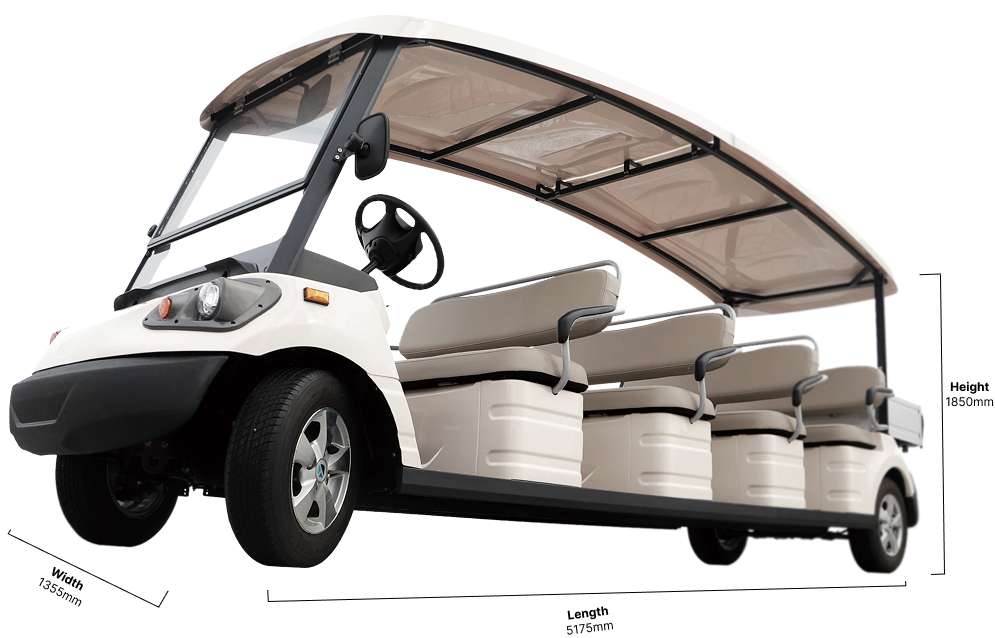

F-UT11

11-PASSENGER
ELECTIRC UTILITY CART

AGV(Automatic Guided Vehicle)
DY INNOVATE O.D.M

Automatic Driving
Control System

Quality
Management

Safety &
Convenience

demand based
11-passenger

FEATURES

Equipped with the highest output motor in its class (AC/4.6kw)

Adoption of 4-wheel hydraulic disc brakes

Adoption of heated front and rear seats

12V charging jack for vehicle

Samsung SDI Lithium Battery

Inspection port that maximizes inspection convenience

Adoption of MacPherson type suspension

Best-in-class uphill climbing ability

Two-division type lower opening/closing window shield

Anti-slip and accelerator malfunction prevention bar

Multi-purpose rear locker

Various storage spaces in the front

Low angle armrest for the driver

lithium battery

Foreon strives to have competitive technology such as safety and convenience, driving performance, and maintenance.

690kg

Total Weight

Lead-acid 860kg,
Lithium 690kg

48V

Battery Specifications

Lead-acid 48V / 240AH
Lithium 48V / 110AH

AC48v

Track Drive

AC 48v
4.6Kw

Specifications

Height 1850mm

Width 1355mm

Length 5175mm

Length / Width / Height
5175 x 1355 x 1850 (mm)

Total Weight
Lead-acid 860kg, Lithium 690kg

Riding Capacity
11-passenger (2+3+3+3) / 4-row

Battery Specifications
Lead-acid 48V / 240Ah
Lithium 48V / 110Ah

Track Drive
AC 48v / 4.6Kw

Suspension Device
4-wheel independent suspension

Tire
155 / 70R12

Steering
Mechanical(R&P)

Brake
4-wheel hydraulic brakes
Electronic brakes (Parking)

Speed
1~19Km/h

Gradeability
20°

Minimum Rotation Range
6m

OPTION LIST

Wind curtain / Ceiling net / Winter sheet / Summer sheet / Safety handle thermal cover / Customized for user's convenience
